16X2 RGB LCD

16 X2 RGB LCD

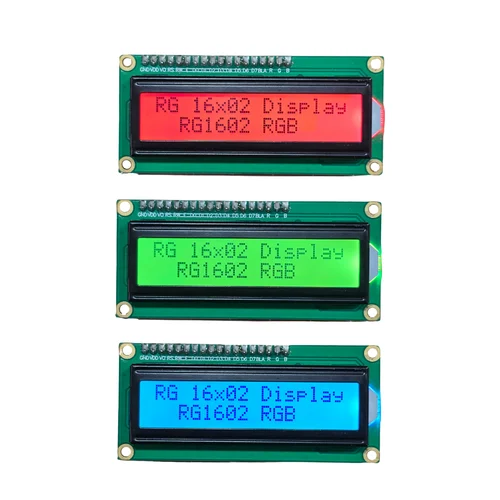

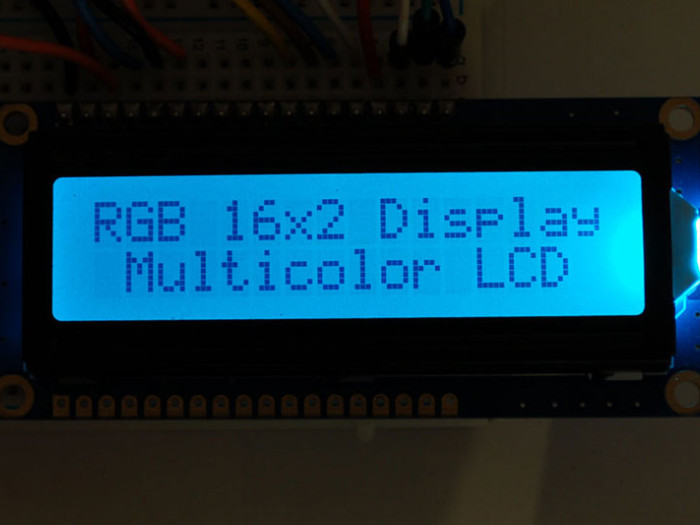

ERM1602F7-6 is 16 characters wide,2 rows character LCD module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface, with RGB(7 colors) LED backlight ,FFSTN LCD positive, black text on RGB background ,high contrast ,wide operating temperature range, wide view angle, ROHS compliant ,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. Optional 3.3v or 5v power supply and optional pin header connection.

It’s easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi. It can be used in any embedded systems ,industrial device, security, medical and hand-held equipment.

Of course, we wouldn’t just leave you with a datasheet and a “good luck! .

Datasheet for Character LCD Module,Controller IC

Format	Documents Name	Version	Language	Update Date	Size
	16×2 Character LCD Module Datasheet	1.0	English	May-20-2019	478K
	Controller IC SPLC780C Datasheet	1.1	English	Jul-09-2002	813K

Please Note : Backlight is Anode Pin , RGB PIns Are Cathode Controlled

Take A Look At Your RGB Controller For This LCD Here
